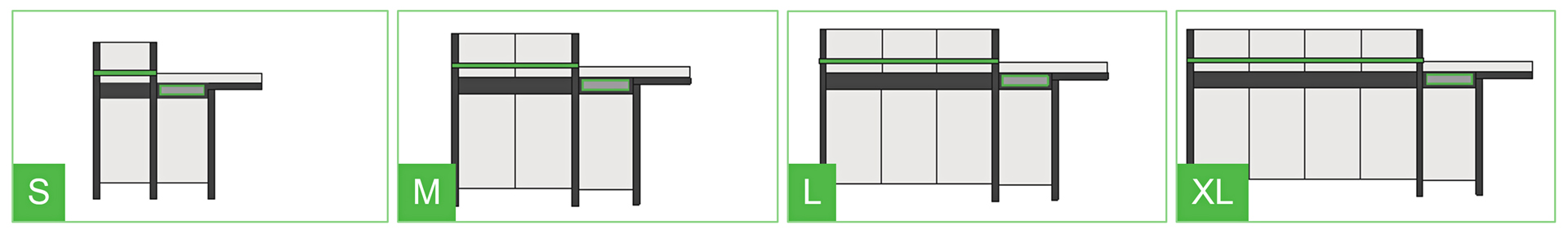

Hardware modularity

Suitable for customers having automated testing need only for few measurements

Enables fast measurement speed and/or short measurement steps in CD profile samples.

Cost-efficient selection covering the most typical and critical measurement needs.

Most common selection. Allows good variety of different measurement modules.

With L size there is typically space in the frame for measurement speed optimization.

Possibilty to serve multiple paper or board machines testing needs with one frame only.

For customers who have special measurement needs.

• Width 1610 mm (63,5”)
• Height 1300 mm (51”)
• Depth 820 mm (32.3”)
• 3x5 cells
• Weight 230 kg (507 lb)

• Width 2060 mm (81”)
• Height 1300 mm (51”)
• Depth 820 mm (32.3”)
• 3x10 cells
• Weight 350 kg (770 lb)

• Width 2510 mm (99”)
• Height 1300 mm (51”)
• Depth 820 mm (32.3”)
• 3x15 cells
• Weight 470 kg (1040 lb)

• Width 2960 mm (117”)
• Height 1300 mm (51”)
• Depth 820 mm (32.3”)
• 3x20 cells
• Weight 590 kg (1300 lb)
